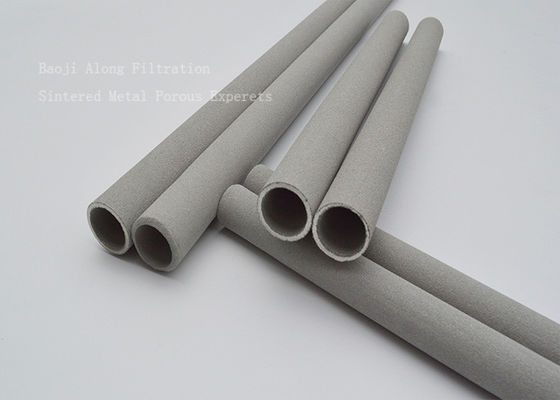

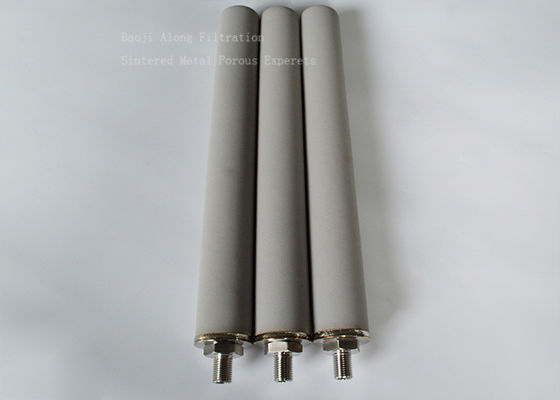

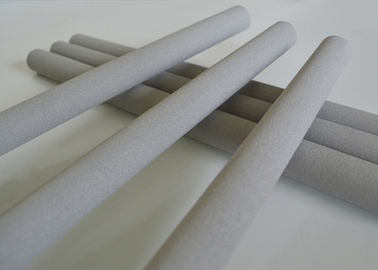

316 L SS Metal Sintered Pipe , Porous Metal Sintered Filter Tube

Large Image : 316 L SS Metal Sintered Pipe , Porous Metal Sintered Filter Tube

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Titanium,304,316, 316 L	Technique:	Powder Sintered
Filtration:	0.5-100um	Porosity:	30%-45%
Specific Surface Area:	10-40cm2/cm3	Working Pressure:	2 MPa
High Light:	porous pipe , ss sintered filter cartridge

Metal Sintered Pipe, Porous Metal Sintered Filter Tube

Applications of sintered porous metal stainless steel sparger

Aeration – Air sparging to meet BOD (Biological Oxygen Demand) on the waste stream.
Agitation – Air injection for mixing liquids in a vessel.
Bioremediation – Air sparging to stimulate the growth of bacteria for hazardous waste treatment.
Carbonation – CO2 sparging for carbonated beverages and beer.
Chlorine bleaching – Chlorine sparging for bleaching pulp in the manufacture of paper.
Column flotation – Air sparging for coal flotation, and other separations of solids.
Dewatering – Nitrogen sparging to remove entrained water from motor oil.
Fermentation – Oxygen or air sparging to enhance cell growth in fermentation reactions.
Gas/liquid reactions – Sparging air, oxygen, or other gases into reactors for improved performance.
Hydrogenation – Hydrogen sparging for a broad spectrum of chemical hydrogenation reactions.
Oil flotation – Air or natural gas sparging for oil removal from produced water from oil wells.
Oxygen bleaching – Oxygen sparging for bleaching pulp in the manufacture of paper.
Oxygen stripping – Nitrogen sparging to remove oxygen from edible oils, wine, and juices.
Blanketing in Storage tanks
Oxygenation – Oxygen sparging in fish farming for significant stimulation of fish growth.
Ozonation – Ozone sparging to sanitize ultrapure water systems in pharmaceutical plants.
pH control – CO2 or NH3 sparging to adjust pH in waste or process streams.
Steam injection – Direct steam injection for efficient heating, and to eliminate “steam hammer.”
Volatile stripping – Air sparging for removal of VOC (Volatile Organic Compounds) from waste streams.

Technical Parameters Of Powder Sinter Porous metal pipe:

Material

Filter

Rating

Porosity

working

pressure

Operating temperature

shape

Penetrabiltity

Specific surface area

316L ss

0.5um- 70um

30-45%

3.0MPa

600℃

Disc, Sheet,

Tube, cap

3-800
M³/M²hKPa

10-40cm²/cm³

Material

Filter Rating

Porosity

working pressure

Operating temperature

shape

Penetrabiltity

Specific surface area

titanium

powder

0.5um-70um

30-45%

2.0MPa

300℃

Disc, Sheet, Tube, Cap,

3-1300

M³/M²hKPa

10-40

cm²/cm³

Material

Filter

Rating

Porosity

working

pressure

Operating temperature

shape

Penetrabiltity

Specific surface area

Nickel
(Hastelloy, Monel)

0.5um- 70um

30-45%

3.0MPa

600℃+

Disc, Sheet,

Tube, cap

3-1300
M³/M²hKPa

10-40
cm²/cm³

Size of sinter porous metal filter materials available:

Products	Diameter/Length	Diameter/Width	Thickness	Customized
Sintered porous round discs	φ5-φ400mm	φ5-φ400mm	1-20mm	Yes
sintered porous sheet	5-600mm	5-600mm	1-20mm	Yes
sintered porous tube	100-1200m	φ20-φ200mm	1-10mm	Yes
sintered porous cartridge	100-1200m	φ20-φ200mm	1-10mm	Yes
