10/20/40 Inch Sintered Stainless Steel Carbonation Diffusion Stone

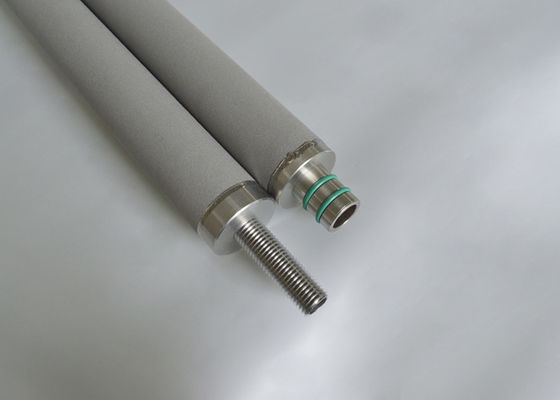

Large Image : 10/20/40 Inch Sintered Stainless Steel Carbonation Diffusion Stone

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	304 316L Titanium	Technique:	Powder Sintered
Filter Rating:	0.5-100um	Porosity:	25%-50%
Working Pressure:	3MPa	Application:	Petrochemical, Food, Beer, Pharmacutical
Highlight:	Carbonation Diffusion Stone , 40 Inch Sintered Metal Filter Elements , SS Sintered Metal Filter Elements

10/20/40 Inch Sintered Stainless Steel Carbonation Diffusion Stone

I. Manufacturing Technique

Titanium metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.

Production Steps: Filtrate-- Isostatic compaction--Vacuum sintering

Feature: the material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.

Advantage: good permeability, pore size, and porosity are controllable, shape stability, high filtration accuracy, wear-proof, good mechanical properties, good thermal conductivity, heat resistance, heat dissipation performance, backflush, and reuse.

Titanium sintered porous materials are allowed to use in the environment:3% hydrochloric acid, 5% sulfuric acid, various concentrations of nitric acid (smoke nitric acid prohibited), chloroazotic acid, seawater, sodium hydroxide, carbonate and chloride salts of the aqueous solution.

II. Properties of sintered porous titanium materials:

High-temperature resistance, in normal use 300 ℃.
High mechanical strength, good plasticity, can be machined.
Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
Good molding process, according to customer drawings for processing a molding.
High filtration precision and good purification effect.
The pores are uniform, the internal structure is stable, and no particles fall off.
Good air permeability, easy to back blow cleaning, can be used repeatedly online regeneration.
Wear resistance and impact resistance, good mechanical properties

III. Technical parameters of powder sintered porous titanium materials:

Material	Filter Rating	Porosity	working pressure	Operating temperature	shape	Penetrabiltity	Specific surface area
titanium powder	0.5um-70um	30-45%	2.0MPa	300℃	Disc, Sheet, Tube, Round Bar, cap.	3-800M³/M²hKPa	10-40cm²/cm³

Products	Diameter/Length	Diameter/Width	Thickness	Customized
Sintered porous round discs	φ5-φ400mm	φ5-φ400mm	1-20mm	Yes
sintered porous sheet	5-600mm	5-600mm	1-20mm	Yes
sintered porous tube	100-1200m	φ20-φ200mm	1-10mm	Yes
sintered porous cartridge	100-1200m	φ20-φ200mm	1-10mm	Yes

V. Application Of Sintered Porous Materials

Titanium sintered porous materials are mostly used for filtering materials, electrodes, heat transfer materials, catalyst carrier materials, noise-canceling materials according to their physical and structural properties.

Decarburization filtration of pharmaceutical liquids.
Electrolytic gas industry precision filtration, gas distribution.
The medical industry makes biological implants.
Water treatment industry odor sterilization filtration and ozone aeration.
Clarification and filtration or carbonating in food and beverage processing.
Pre-filtration of reverse osmosis system for the electronics industry.
Terminal filtration of petroleum products in the petrochemical industry and filtration of carbonic alkali liquid in the chemical industry.
High pressure and high-temperature air filtration.
Filtration and recovery of the precious metal catalysts in the fine chemical industry.
The electrode plate matrix or gas diffusion layer of a fuel cell in the new energy.
Catalyst carrier filtration in gas and liquid catalytic reactions.
Water electrolysis hydrogen titanium electrode plate.
