Long Service Life Sintered Titanium Plate Element 20um Impact Proof Non Toxic Material

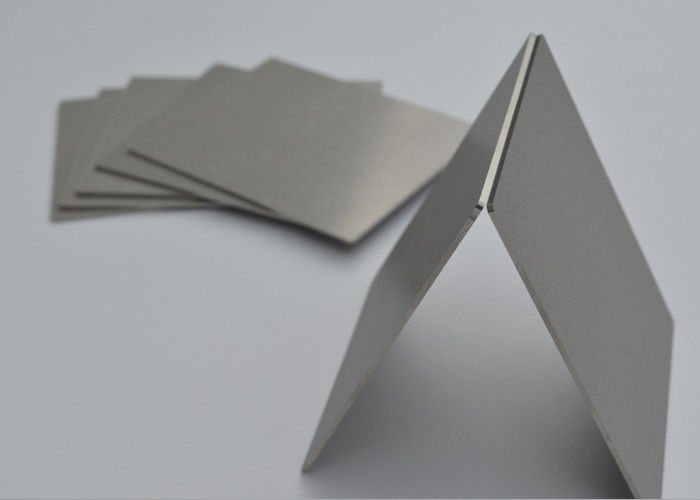

Large Image : Long Service Life Sintered Titanium Plate Element 20um Impact Proof Non Toxic Material

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Titanium	Type:	Plate
Usage:	Fuel Cell PEM, Gas, Liquid	Filter Rating:	5um-100um
After-Sales Service:	Online-Service	Lowest Thick:	0.5mm
High Light:	sinter plate filter , sintered metal plate

Long Service Life Sintered Titanium Plate Element 20um Impact Proof Non-Toxic Material

Material	Filter Rating	Porosity	Penetrability	Working pressure	Operating temperature	Shape	specific surface area
Pure Titanium powder	5um-70um	30-45%	3-800M³/M²hKPa	2.0MPa	300℃	Round disc,sheet,tube,round bar,cap	10-40cm²/cm³

Production	(Diameter)Length	(Diameter)Width	Thickness	Customized
Sintered porous round discs	φ5-φ400mm	φ5-φ400mm	1-20mm	Yes
Sintered porous sheets	1-600mm	5-400mm	1-20mm	Yes
Sintered porous tubes	100-1200mm	φ20-φ200mm	1-10mm	Yes
Sintered porous cartridge	100-1200mm	φ20-φ200mm	1-10mm	Yes

Properties of titanium sintered porous materials:

Pore diameter uniformity, pore stability, high separation efficiency.
High porosity, low filtration resistance, and high permeability.
Good chemical stability, acid, and alkali corrosion resistance, oxidation resistance.
Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
Good mechanical properties, low differential pressure, large flow.
Strong anti-microbial ability, does not interact with microorganisms.
Online regeneration, easy cleaning, long service life.
Excellent biocompatibility can be widely used in biological, food, pharmaceutical, medical industry.
Excellent electromagnetic shielding performance.
Good damping and shock resistance.

Application of titanium sintered porous materials

Titanium sintered porous materials are mostly used for filtering materials,electrodes,heat transfer materials,catalyst carrier materials,noise canceling materials according to their physical and structural properties.

Decarburization filtration of pharmaceutical liquids.
Electrolytic gas industry precision filtration, gas distribution.
The medical industry makes biological implants.
Water treatment industry odor sterilization filtration and ozone aeration.
Clarification and filtration in food and beverage processing.
Prefiltration of reverse osmosis system for the electronics industry.
Terminal filtration of petroleum products in the petrochemical industry and filtration of carbonic alkali liquid in the chemical industry.
High-pressure air filtration in the aerospace industry.
Filtration and recovery of the precious metal catalyst in the fine chemical industry.
The electrode matrix of a fuel cell.
Catalyst carrier in gas and liquid catalytic reactions.

Titanium sintered porous materials are allowed to use in the environment:3% hydrochloric acid, 5% sulfuric acid, various concentrations of nitric acid (smoke nitric acid prohibited), chloroazotic acid, seawater, sodium hydroxide, carbonate and chloride salts of the aqueous solution.

Precautions for the use of titanium sintered porous materials

During installation, disassembly and clean avoid scratches, collisions and falls on hard objects.
Install correctly to avoid reverse filtering.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.
When cleaning the filter element, the first backflow with pure gas, backflow pressure is 1.5 times the working pressure, each time for 3-5 seconds, and 4-6 times, then backwash with clean liquid for 3-5 minutes, repeat 2-3 times.
If the filter element is not good after online back blowing and backwashing, it should be removed and cleaned in time.
