Liquid 30um Porous Sintered Titanium Filter Cartridge

Metal Porous Sintered titanium filter cartridge steam and hot gas filtration and purification​

1.Description

Titanium rod filter element with its unique performance, can be widely used in the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical, metallurgical industry and gas purification field. It is a kind of new material with wide development prospect. Typical uses include:

1) pharmaceutical industry, large infusion, small injection, eye drops, oral liquid in the concentrated distribution link of the decarbonization filtration and sparse distribution link before the terminal filtration security filtration.

2.)Removal of impurities in the production process of API, removal of carbon filtration and fine filtration of materials.

3) water treatment industry in the ultrafiltration, RO, EDI system security filtration, ozone sterilization after filtration and ozone aeration.

4) Clarification and filtration of beverage, liquor, beer, vegetable oil, mineral water, soy sauce and vinegar in food and beverage.

5) the chemical industry of liquid products, liquid raw materials, pharmaceutical intermediates of decarbonization filtration and precision filtration, ultra-fine fine body, catalytic agent filtration and recovery, precision filtration after resin adsorption and system heat conduction oil, material in addition to miscellany filtration, catalytic gas purification, etc.

6) oil field reflux water filtration, seawater desalination field before the reverse osmosis security filtration.

7) the dye industry of high temperature decharring, dewhite soil filtration.

8) gas purification steam, compressed air, catalyst filtration.

Features:

1.) Excellent filtration performance (1-100um)

2. )Shape stability and high strength of elements.

3.) High temperature resistance (working under high temperature environment <900 °C)

4.) High corrosion resistance

5.) High impact and alternating load

6. )Better permeability and excellent separation

7. )Good backwash, easy to recover elements

8.) Low pressure drop.

9).Deep filtration, with a strong capacity to absorb pollution

2.Titanium rod filter application industry

a. Pharmaceutical industry

The security filtration before the terminal filtration in the thick distribution of large infusion, small injection, eye drops and oral liquid in pharmaceutical industry and in the thin distribution. Impurity removal filtration, material removal and fine filtration in the production process of API.

b.Chemical industry

Chemical industry in the liquid products, liquid raw materials, pharmaceutical intermediates of decarbonization filtration and precision filtration, ultrafine fine body, catalyst filtration recovery, resin adsorption precision filtration and system heat conduction oil, material removal of impurity filtration, catalytic gas purification

c.Water treatment industry

Security filtration of ultrafiltration, RO, EDI system in water treatment industry, ozone sterilization after filtration and ozone aeration. Oil field reflux water filtration, seawater desalination field precision filtration before reverse osmosis.

d. Sewage treatment

Compared with the common aerator, the energy consumption of the microporous pure titanium aerator is reduced by 40%, and the sewage treatment capacity is nearly doubled. With a long service life of ten years, it is especially suitable for urban sewage, large water use plant construction and expansion and old aeration tank transformation.

e.Food industry

Food and beverage beverage, liquor, beer, vegetable oil, mineral water, soy sauce, vinegar clarification filtration.

f.Other industries

g.Dye industry of high temperature decharring, dewhite soil filtration. Gas purification of steam, compressed air, catalytic gas purification and filtration

3.Typical application

1.1. High temperature steam and gas filtration

2.2. Filtration of oil slurry and other petrochemical products

3.3. Filtration and recovery of solid catalysts

4.4. Ozone disinfecting water filtration in food production process

5.5. Filtration of chemically complex liquids

6.6. Filtration of liquid and gas under high temperature and pressure

4.Performance parameter

1) Diameter: 18mm, 20mm,25mm, 30mm, 40mm, 50mm, 55mm, 60mm, 70mm,75mm, 80mm

2)Length: Max 1200mm/pcs

3)Micro pore size(Filter precision): 1um-100um

4)Thickness: 2-2.5mm

5) Accept special customization

4.​Features of stainless steel sintered porous materials:

Stainless steel sintered porous material has excellent corrosion resistance, oxidation resistance, wear resistance and mechanical properties.

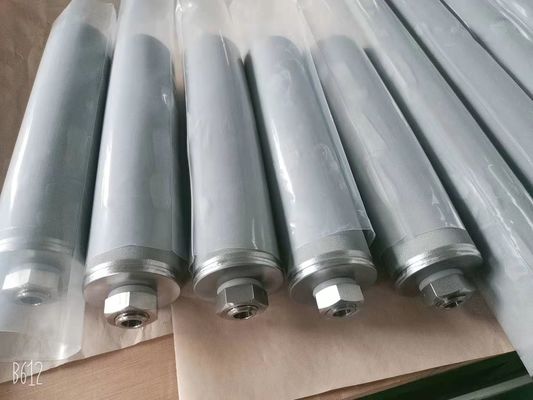

5. Products show
