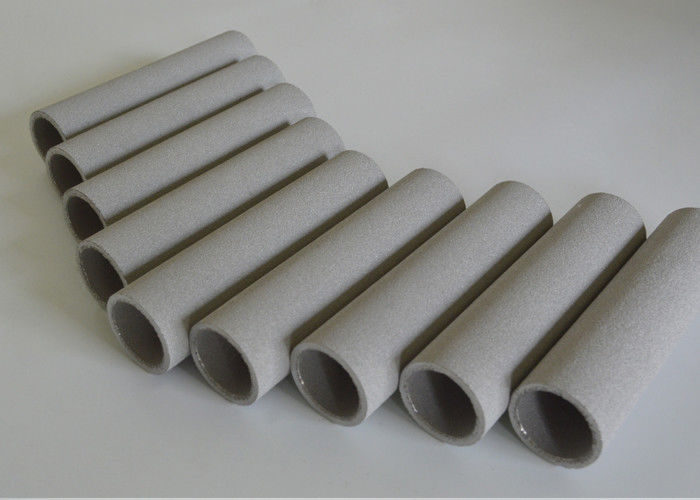

Rigid Structure Stainless Steel Porous Pipe For Material Filtration

Large Image : Rigid Structure Stainless Steel Porous Pipe For Material Filtration

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Type:	Candle
Usage:	Gas Filter, Liquid Filter, Sparger	Filter Rating:	0.5-100um
After-Sales Service:	Online-Support
Highlight:	porous pipe , stainless steel filter tube

Rigid Structure Stainless Steel Porous Pipe For Material Filtration

Metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.

Production Steps: Filtrate-- Isostatic compaction--Vacuum sintering

Feature: the material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles,

the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.

Advantage: good permeability, pore size, and porosity are controllable, shape stability, high filtration accuracy,wear-proof, good mechanical properties, good thermal conductivity,

heat resistance, heat dissipation performance, backflush, and reuse.

Powder Sintered Filter Elements Specification
Material	OD	Penetrability	Wall Thickness	Micron Rating	Limited Pressure	Connector
Titanium Stainless Steel Nickel Baiss	Φ18,Φ20, Φ25,Φ30, Φ40,Φ50, Φ55,Φ60, Φ70,Φ75, Φ80	3-800m3/m2hKpa	2.5-3mm	Titanium: 5-100um Stainless Steel: 0.5-100um	2.5-3 Mpa	M20, M30, 222, 226, NPT, DOE

Properties Of Ss Filter Elements And Materials By Isostatic Compaction
Type	Particle Size Value Of Barrier In Liquid um		Relative Air Permeability m3·(h·kPa·m2)-1	Compressive Strength Mpa
	Filt Efficiency 98%	Filt Efficiency 99.9%
FSD01	1	3	≥5	≥3.0
FSD03	3	5	≥18	≥3.0
FSD05	5	9	≥45	≥3.0
FSD10	10	15	≥100	≥3.0
FSD15	15	24	≥200	≥3.0
FSD20	25	35	≥400	≥3.0
FSD35	35	55	≥580	≥2.5
FSD50	50	80	≥750	≥2.5
FSD80	80	120	≥1200	≥2.5

Properties of titanium sintered porous materials:

Pore diameter uniformity, pore stability, high separation efficiency.
High porosity, low filtration resistance, and high permeability.
Good chemical stability, acid, and alkali corrosion resistance, oxidation resistance.
Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
Good mechanical properties, low differential pressure, large flow.
Strong anti-microbial ability, does not interact with microorganisms.
Online regeneration, easy cleaning, long service life.
Excellent biocompatibility can be widely used in biological, food, pharmaceutical, medical industry.
Excellent electromagnetic shielding performance.
Good damping and shock resistance.

Properties of stainless steel sintered porous materials:

High-temperature resistance, in normal use under 500 ℃.
High mechanical strength, good plasticity, can be machined.
Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
Good molding process, according to customer drawings for processing a molding.
High filtration precision and good purification effect.
The pores are uniform, the internal structure is stable, and no particles fall off.
Good air permeability, easy to back blow cleaning, can be used repeatedly online regeneration.
Wear resistance and impact resistance, good mechanical properties.

Properties of nickel sintered porous materials:

The porous structure has the characteristics of wide frequency sound absorption and sound insulation.
It has the function of electron wave shielding.
Corrosion-resistant can be used in molten sodium, hydrogen fluoride gas.
High-temperature resistant performance is excellent, can be used at a high temperature of 1000 ℃ environment.
The porous structure has good thermal conductivity and air permeability.
The pore structure is uniform and the heat transfer is quick.
