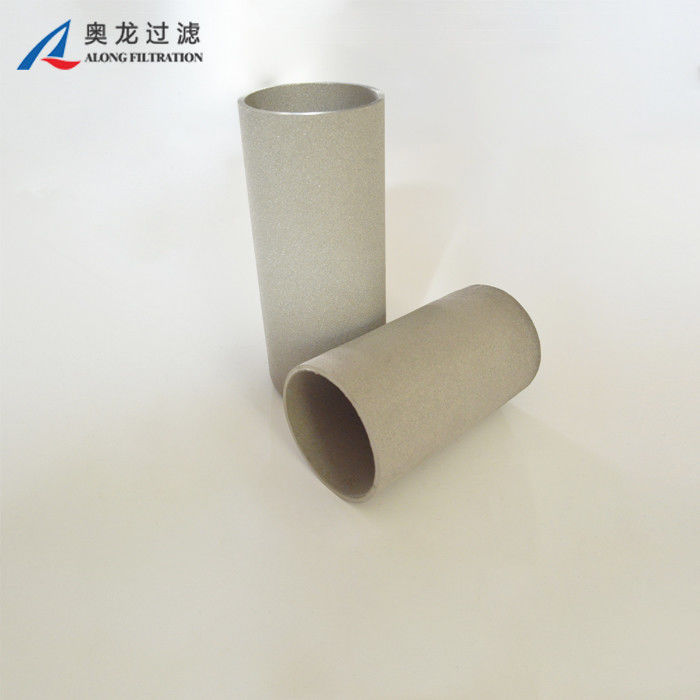

Chemical Candle Porous Titanium Powder Sintered Tube

Chemical Candle Porous Titanium Powder Sintered Tube
Chemical Candle Porous Titanium Powder Sintered Tube

Large Image :  Chemical Candle Porous Titanium Powder Sintered Tube

Product Details:

Place of Origin: Baoji, China
Brand Name: Along
Certification: SGS, ISO
Model Number: None

Payment & Shipping Terms:

Minimum Order Quantity: 10 PCS
Packaging Details: Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time: 5-10 Days
Payment Terms: T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability: 2000PCS/Month
Detailed Product Description
Material: Stainless Steel Type: Candle
Usage: Gas Filter, Liquid Filter, Sparger Filter Rating: 0.5-100um
After-Sales Service: Online-Support
Highlight:

Titanium Powder Sintered Tube

,

Porous Sintered Tube

,

Candle Sintered Tube

Porous Titanium Powder Sintered Tube Used For Chemical Water Treatment Filter



Powder Sintered Filter Elements Specification
Material OD Penetrability Wall Thickness Micron Rating Limited Pressure Connector
Titanium Stainless Steel Nickel Baiss Φ18,Φ20, Φ25,Φ30, Φ40,Φ50, Φ55,Φ60, Φ70,Φ75, Φ80 3-800m3/m2hKpa 2.5-3mm Titanium:        5-100um Stainless Steel:                    0.5-100um 2.5-3 Mpa M20, M30, 222, 226, NPT, DOE



Properties Of Ss Filter Elements And Materials By Isostatic Compaction
Type Particle Size Value Of Barrier In Liquid um Relative Air Permeability m3·(h·kPa·m2)-1 Compressive Strength Mpa
Filt Efficiency 98% Filt Efficiency 99.9%
FSD01 1 3 ≥5 ≥3.0
FSD03 3 5 ≥18 ≥3.0
FSD05 5 9 ≥45 ≥3.0
FSD10 10 15 ≥100 ≥3.0
FSD15 15 24 ≥200 ≥3.0
FSD20 25 35 ≥400 ≥3.0
FSD35 35 55 ≥580 ≥2.5
FSD50 50 80 ≥750 ≥2.5
FSD80 80 120 ≥1200 ≥2.5

Properties of titanium sintered porous materials:

  • Pore diameter uniformity, pore stability, high separation efficiency.
  • High porosity, low filtration resistance, and high permeability.
  • Good chemical stability, acid, and alkali corrosion resistance, oxidation resistance.
  • Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
  • Good mechanical properties, low differential pressure, large flow.
  • Strong anti-microbial ability, does not interact with microorganisms.
  • Online regeneration, easy cleaning, long service life.
  • Excellent biocompatibility can be widely used in biological, food, pharmaceutical, medical industry.
  • Excellent electromagnetic shielding performance.
  • Good damping and shock resistance.

Properties of stainless steel sintered porous materials:

  • High-temperature resistance, in normal use under 500 ℃.
  • High mechanical strength, good plasticity, can be machined.
  • Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
  • Good molding process, according to customer drawings for processing a molding.
  • High filtration precision and good purification effect.
  • The pores are uniform, the internal structure is stable, and no particles fall off.
  • Good air permeability, easy to back blow cleaning, can be used repeatedly online regeneration.
  • Wear resistance and impact resistance, good mechanical properties.



Properties of nickel sintered porous materials:

  • The porous structure has the characteristics of wide frequency sound absorption and sound insulation.
  • It has the function of electron wave shielding.
  • Corrosion-resistant can be used in molten sodium, hydrogen fluoride gas.
  • High-temperature resistant performance is excellent, can be used at a high temperature of 1000 ℃ environment.
  • The porous structure has good thermal conductivity and air permeability.
  • The pore structure is uniform and the heat transfer is quick.
