Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel | Type: | Cartridge |
---|---|---|---|
Usage: | Liquid, Gas, Etc. | Filter Rating: | 0.5-100um |
After-Sales Service: | Online-Support | OEM/ODM: | Available |
Highlight: | water filter cartridges,sintered metal filter cartridge |

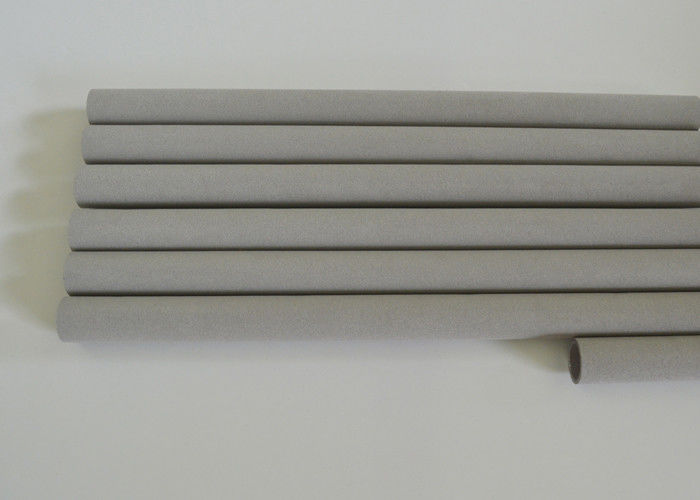

Rust Proof Water Sintered Stainless Steel Tube High Mechanical Strength Backwashing Easy Recovery
Powder Sintered Filter Elements Specification | |||||||
Material | OD | Penetrability | Wall Thickness | Micron Rating | Limited Pressure | Connector | |
Titanium Stainless Steel Nickel Basis | Φ18,Φ20, Φ25,Φ30, Φ40,Φ50, Φ55,Φ60, Φ70,Φ75, Φ80 | 3-800m3/m2hKpa | 2.5-3mm | Titanium: 5-100um Stainless Steel: 0.5-100um | 2.5-3 Mpa | M20, M30, 222, 226, NPT, DOE |
Properties Of Ss Filter Elements And Materials By Isostatic Compaction | |||||||
Type | Particle Size Value Of Barrier In Liquid um | Relative Air Permeability m3·(h·kPa·m2)-1 | Compressive Strength Mpa | ||||
Filter Efficiency 98% | Filter Efficiency 99.9% | ||||||
FSD01 | 1 | 3 | ≥5 | ≥3.0 | |||
FSD03 | 3 | 5 | ≥18 | ≥3.0 | |||
FSD05 | 5 | 9 | ≥45 | ≥3.0 | |||
FSD10 | 10 | 15 | ≥100 | ≥3.0 | |||
FSD15 | 15 | 24 | ≥200 | ≥3.0 | |||
FSD20 | 25 | 35 | ≥400 | ≥3.0 | |||
FSD35 | 35 | 55 | ≥580 | ≥2.5 | |||
FSD50 | 50 | 80 | ≥750 | ≥2.5 | |||
FSD80 | 80 | 120 | ≥1200 | ≥2.5 |
Properties of stainless steel sintered porous materials:
Application of stainless steel sintered porous materials
According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core and so on.
Precautions for the use of stainless steel sintered porous materials
