Product Details:
Payment & Shipping Terms:
|
Materials: | Metal,Stainless Steel 316L Powder | Technique: | High Temperature Sintered |
---|---|---|---|
Filter Rating: | 1-100um | Working Pressure: | 2.5-3.0Mpa |
Size: | Customized(Length/diameter/wall Thickness) | Type: | Filter Elements,Filter Cylinder,filter Tube |
Feature: | Corrosion Resistance,High Precision Filtering,Heat Resistance,High Temperature Resistance,High Filtration Efficiency | Apllication: | Solid-liquid Separation, Micro Bubble Diffusers, Chemical Industry,lab,Gas-liquid Filter |
Porosity: | 30%-45% | Application: | Industrial |
Bending Strength: | Customized | Heat Resistance: | High |
Length: | Customized | Material: | Stainless Steel |
Pressure Resistance: | High | Surface Treatment: | Sintered |
Tolerance: | Customized | ||
Highlight: | Industrial Sintered Stainless Steel Tube,Sintered Stainless Steel Filter Tube,High Temperature Resistant Sintered Filter Tube |

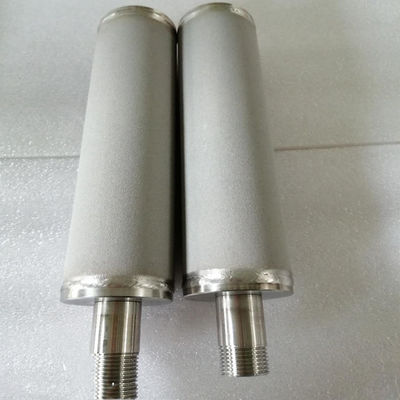

10um Sintered Stainless Steel Filter Tube Micro Gas Diffusers And Spargers
1. Stainless steel sintered filter tube description
316L powder sintered
stainless steel powder filter element
high temperature resistant filter element high pressure resistant filter element
ultra-high temperature resistant filter element
The stainless steel powder sintered filter element is made of ultrafine stainless steel powder sintered at high temperature. By selecting the powder particle size and process parameters, the pore size and distribution can be adjusted. It is especially suitable for replacing the titanium rod filter element in the decarburization process of pharmaceutical industry.
2.1. Controllable pore size and porosity, high filtration accuracy
2.2. Good permeability and small initial pressure difference
2.3. Corrosion resistance, can be used in highly corrosive environment
2.4. High mechanical strength, good stability, can work under high pressure difference
2.5. High temperature resistance
2.6. Renewable and long service life
4.Typical application
4.1. High temperature steam and gas filtration
4.2. Filtration of oil slurry and other petrochemical products
4.3. Filtration and recovery of solid catalysts
4.4. Ozone disinfecting water filtration in food production process
4.5. Filtration of chemically complex liquids
4.6. Filtration of liquid and gas under high temperature and pressure
5.Technical data of sintered metal powder filter element:
Material: 316L, titanium
Filtration accuracy: 1- 100 microns
Operating temperature: ≤ 600 ℃
Outside diameter: 18 to 80mm
Length: according to customer requirements
Gasket: PTFE, fluorine rubber, silicone rubber, EPDM, NBR
Connector: DOE (Double Open) 220 222 226 NPT etc.
6.Core products list
7.Factory view
