Anti Corrosion Aeration Porous SS316L Sintered Filter Tube

Porous Sintered Stainless Steel Filter Cartridge Fine Bubble Diffusers

1.Description

Sintered stainless steel powder filter uses 316L SS powder as raw material, without adding adhesive.After cold isostatic forming, high temperature vacuum sintering is adopted.By selecting the size and process parameters of the element, the aperture and distribution of the element can be adjusted.Metal powder particles.Based on the characteristics of pore structure, material composition and compressive strength of different filtration materials, the final filtration products suitable for users are developed.Porosity can be adjusted from 30% to 45% during production according to demand.

Features:

1.) Excellent filtration performance (1-100um)

2. )Shape stability and high strength of elements.

3.) High temperature resistance (working under high temperature environment <900 °C)

4.) High corrosion resistance

5.) High impact and alternating load

6. )Better permeability and excellent separation

7. )Good backwash, easy to recover elements

8.) Low pressure drop.

9).Deep filtration, with a strong capacity to absorb pollution

2.Application:

Widely used in petrochemical industry, chemistry, fine chemical industry, coal chemical industry, food and beverage, nuclear power, shipbuilding, automobile manufacturing and other industries

1. )Catalyst filtration

2.) Filter liquids and gases

3.) Produce a filter for recovering mother liquor from PAT

4.) Filters for food and drink

5.) Boiling turning lathe

6.) The liquid flushes the foam of the tank

7.) Fire fighting and isolation

8.) Balance and damp airflow

9.) Sensor probe protection

10.) Filter and mute pneumatic equipment

11)Pulverized coal processing

12. )Gas homogenization and gas channels in the powder industry

13.) Other

3.Typical application

1.1. High temperature steam and gas filtration

2.2. Filtration of oil slurry and other petrochemical products

3.3. Filtration and recovery of solid catalysts

4.4. Ozone disinfecting water filtration in food production process

5.5. Filtration of chemically complex liquids

6.6. Filtration of liquid and gas under high temperature and pressure

4.Performance parameter

1) Diameter: 18mm, 20mm,25mm, 30mm, 40mm, 50mm, 55mm, 60mm, 70mm,75mm, 80mm

2)Length: Max 1200mm/pcs

3)Micro pore size(Filter precision): 1um-100um

4)Thickness: 2-2.5mm

5) Accept special customization

4.​Features of stainless steel sintered porous materials:

Stainless steel sintered porous material has excellent corrosion resistance, oxidation resistance, wear resistance and mechanical properties.

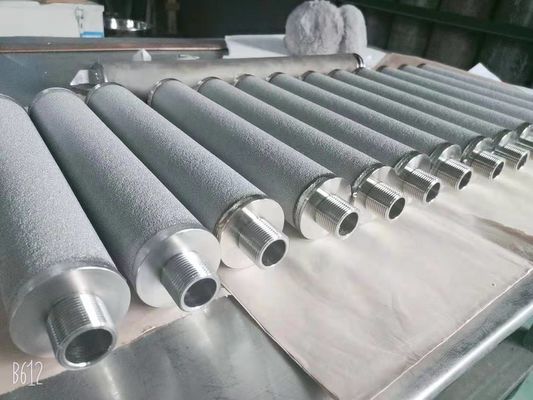

5. Products show
