Titanium Sintered Metal Filter Disc Excellent Air Permeability

Name: Titanium Sintered Metal Filter Disc Excellent Air Permeability
Brand: changsheng
SKU: None
Price: 20 USD
Availability: InStock
Rating: 5 (146 reviews)

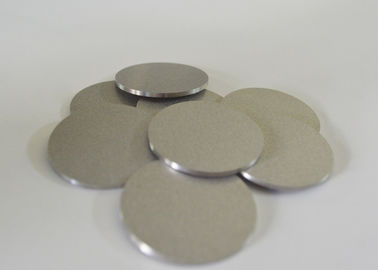

Large Image : Titanium Sintered Metal Filter Disc Excellent Air Permeability

Product Details:

Place of Origin:	Baoji, China
Brand Name:	changsheng
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Titanium	Filter Rating:	5~100 Micron
Usage:	Air Filter,Liquid Filter,Filtration,Solid Filter,oil Filter	Type:	Filter Disc,Filter Elements
Product Name:	Sintered Stainless Steel Filter Disc	Business Type:	Direct Factory
Diameter:	300mm In Max	Thickness:	0.5-2.2mm
High Light:	sintered disc filter , porous stainless steel discs

Titanium Sintered Metal Filter Disc Excellent Air Permeability

Available Size Range Of Metal Sintered Products
Product	Max Length(Diameter)	Width(Diameter)	Thickness Range	Customized
Sintered Porous Plate	800mm	300mm	0.5-2.2mm	Yes
Sintered Porous Disc	300mm	300mm	0.5-2.2mm	Yes

Properties Of Titanium Filter Elements And Materials By Isostatic Compaction
Type	Particle Size Value Of Barrier In Liquid um		Relative Air Permeability m3·(h·kPa·m2)-1	Compressive Strength Mpa
	Filt Efficiency 98%	Filt Efficiency 99.9%
FTD01	1	3	≥5	≥3.0
FTD03	3	5	≥8	≥3.0
FTD05	5	10	≥30	≥3.0
FTD10	10	14	≥80	≥3.0
FTD15	15	20	≥150	≥3.0
FTD20	20	32	≥200	≥2.5
FTD35	35	52	≥400	≥2.5
FTD60	60	85	≥600	≥2.5

Titanium Sintered Metal Filter Disc Excellent Air Permeability 0

Properties of titanium sintered porous materials:

Pore diameter uniformity, pore stability, high separation efficiency.
High porosity, low filtration resistance, and high permeability.
Good chemical stability, acid, and alkali corrosion resistance, oxidation resistance.
Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
Good mechanical properties, low differential pressure, large flow.
Strong anti-microbial ability, does not interact with microorganisms.
Online regeneration, easy cleaning, long service life.
Excellent biocompatibility can be widely used in biological, food, pharmaceutical, medical industry.
Excellent electromagnetic shielding performance.
Good damping and shock resistance.

Application of titanium sintered porous materials

Titanium sintered porous materials are mostly used for filtering materials, electrodes, heat transfer materials, catalyst carrier materials,noise-canceling materials according to their physical and structural properties.

Decarburization filtration of pharmaceutical liquids.
Electrolytic gas industry precision filtration, gas distribution.
The medical industry makes biological implants.
Water treatment industry odor sterilization filtration and ozone aeration.
Clarification and filtration in food and beverage processing.
Prefiltration of reverse osmosis system for the electronics industry.
Terminal filtration of petroleum products in the petrochemical industry and filtration of carbonic alkali liquid in the chemical industry.
High-pressure air filtration in the aerospace industry.
Filtration and recovery of the precious metal catalyst in the fine chemical industry.
The electrode matrix of a fuel cell.
Catalyst carrier in gas and liquid catalytic reactions.

Titanium sintered porous materials are allowed to use in the environment:3% hydrochloric acid, 5% sulfuric acid, various concentrations of nitric acid (smoke nitric acid prohibited), chloroazotic acid, seawater, sodium hydroxide, carbonate and chloride salts of the aqueous solution.

Precautions for the use of titanium sintered porous materials

During installation, disassembly and clean avoid scratches, collisions and falls on hard objects.
Install correctly to avoid reverse filtering.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.
When cleaning the filter element, the first backflow with pure gas, backflow pressure is 1.5 times the working pressure, each time for 3-5 seconds, and 4-6 times, then backwash with clean liquid for 3-5 minutes, repeat 2-3 times.
If the filter element is not good after online back blowing and backwashing, it should be removed and cleaned in time.
