Material: | Metal | Filter Rating: | 1~100 Micron |
---|---|---|---|
Thickness: | 0.5mm-10mm | Usage: | Air Filter,Liquid Filter,Filtration,Solid Filter,oil Filter |
Width: | Customize Size | Length: | Customize Length |

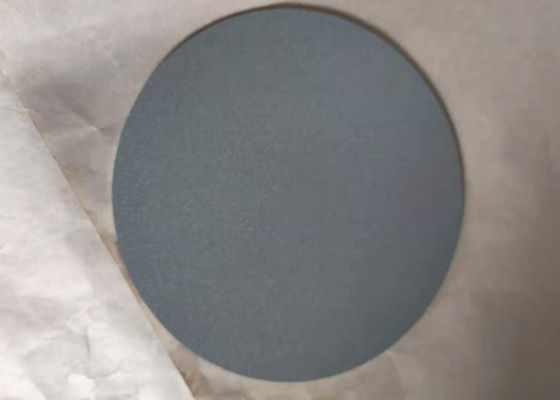

Type: | Filter Disc,Filter Elements | Product Name: | Sintered Stainless Steel Filter Disc |
Application: | Filtration,Kinds Filtration Industry | Diameter: | Customized |
Business Type: | Manufacturer | Aperture: | Round, Square, Rectangle |
Filtration Precision: | 0.1-100 Micron | Pressure Resistance: | 0-10MPa |
Service Life: | 1-5 Years | Shape: | Disc |
Surface Treatment: | Sintered | Temperature Resistance: | 0-300℃ |
Material | Filter Rating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
304,304L,316,316L Stainless steel powder | 0.5um-70um | 30-45% | 3-1300M³/M²hKPa | 3.0MPa | 600℃ | Round Disc, Sheet, Tube, Round Bar, cap. | 10-40cm²/cm³ |
Production | (Diameter)Length | (Diameter)Width | Thickness | Customized |
Sintered porous round discs | φ5-φ300mm | φ5-φ300mm | 0.5-10mm | Yes |
Sintered porous sheets | 5-300mm | 5-300mm | 0.5-10mm | Yes |
Sintered porous tubes | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Sintered porous cartridge | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Properties of stainless steel sintered porous materials:
Application of stainless steel sintered porous materials
According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core and so on.
Precautions for the use of stainless steel sintered porous materials
