Product Details:
Payment & Shipping Terms:
|
Type: | Metal Filter, Filter Disc, Tianium Filter Disk | Material: | Metal |
---|---|---|---|
Filter Rating: | 0.5um-100um | Size: | Customized(length/diameter/thickness) |
Usage: | Gas/liquid Filtration | Technique: | Sintering, Powder Sintered |
Application: | Liquid&gas, Chemical Industry,environment,lab, Food And Beverage | Advantage: | Reusable, High Strength, Corrosion Resistance, High Temperature And High Pressure Resistance, |
Color: | Silver | Packaging: | Carton |
Shape: | Disc | Surface Treatment: | Sintered |
Working Pressure: | Customized | Working Temperature: | Customized |
Highlight: | Water Electrolysis Sintered Metal Disc,Porous Titanium Sintered Metal Filter Disc,PEM Electrolysers Sintered Metal Filter Disc |

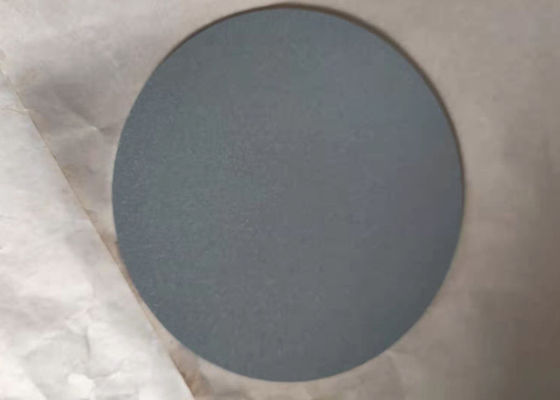

Porous Titanium Sintered Metal Filter Disc For PEM Electrolysers Water Electrolysis
1. Manufacturing Technique
Titanium sintered porous material is a kind of porous material with high quality spherical and high purity titanium powder as raw material and it is made rigid by forming and sintering at high temperature.
Feature: the material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.
2. Specification of titanium sintered porous materials
Material |
Filter Rating |
Porosity |
working pressure |
Operating temperature | shape | Penetrabiltity | Specific surface area |
titanium powder |
0.5um-70um | 30-45% | 2.0MPa | 300℃ |
Round Disc,Sheet, Tube,Round Bar,cap. |
3-800M³/M²hKPa | 10-40cm²/cm³ |
3. Specification of porous titanium disc
Size:Max OD 300mm
Thickness : 0.5-2.2mm
Micro pore size: 5-100um
4. Application of titanium sintered porous materials
Titanium sintered porous materials are mostly used for filtering materials,electrodes,heat transfer materials,catalyst carrier materials,noise cancelling materials according to their physical and structural properties.
It is mainly used for filtration and purification of liquid and gas. It is widely used in petrochemical and biomedicine.It is also the material of ozone aeration technology - ozone diffusion plate.In the hydrogen energy industry, it is widely used as a porous electrode material because of its good electrical conductivity, corrosion resistance and affinity with hydrogen, which can be coated with platinum, ruthenium and iridium and other metals to enhance its electrocatalytic performance.
5. Titanium sintered porous materials are allowed to use in the environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, hydrogen, carbon dioxide gas, water vapor etc.
6. Precautions for the use of titanium sintered porous materials:
