0.5um Powder Sintered Stainless Steel Tube With Suitable Connector

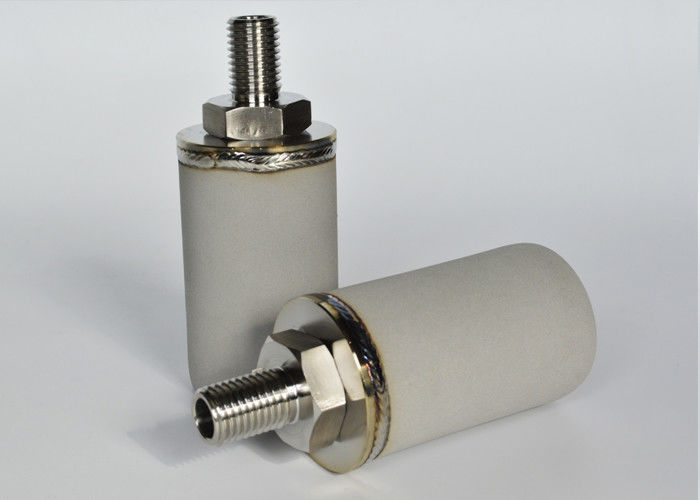

Large Image : 0.5um Powder Sintered Stainless Steel Tube With Suitable Connector

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Type:	Tube
Usage:	Gas	Filter Rating:	0.5um
After-Sales Service:	Online-Support	OEM/ODM:	Available
Highlight:	sintered metal filter cartridge , sintered pipe

0.5um Powder Sintered Stainless Steel Tube With Suitable Connector

1. The production range:

Material	Filter Rating	Porosity	Penetrability	Working pressure	Operating temperature	Shape	specific surface area
304,304L,316,316L Stainless steel powder	0.5um-70um	30-45%	3-1300M³/M²hKPa	3.0MPa	600℃	Round Disc, Sheet, Tube, Round Bar, cap.	10-40cm²/cm³

Production	(Diameter)Length	(Diameter)Width	Thickness	Customized
Sintered porous round discs	φ5-φ300mm	φ5-φ300mm	0.5-2.2mm	Yes
Sintered porous sheets	5-300mm	5-300mm	0.5-2.2mm	Yes
Sintered porous tubes	100-1200mm	φ20-φ200mm	2.5-3mm	Yes
Sintered porous cartridge	100-1200mm	φ20-φ200mm	2.5-3mm	Yes

2. Properties of sintered stainless steel tube:

High-temperature resistance, in normal use under 500 ℃.
High mechanical strength, good plasticity, can be machined.
Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
Good molding process, according to customer drawings for processing a molding.
High filtration precision and good purification effect.
The pores are uniform, the internal structure is stable, and no particles fall off.
Good air permeability, easy to back blow cleaning, can be used repeatedly online regeneration.
Wear resistance and impact resistance, good mechanical properties.

3. Application of sintered stainless steel tube:

According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core, and so on.

The chemical raw material production process in addition to impurity filtration, material decarburization filtration, and fine filtration.
Ultrafiltration, RO, EDI system security filtration in water treatment.
The food and beverage industry finished product clarification filtration.
Filtration and recovery of the precious metal catalyst in the petrochemical industry.
Precision filtration of liquid raw materials, products, and pharmaceutical intermediates in the chemical industry.
Reverse osmosis security filtration in the field of water injection filtration.
Gas purification of steam, compressed air deoiling purification.
Medium purification and flow limitation for pneumatic components, lubricants, fuels, and hydraulic pressure systems.
Chemical dye industry of high - temperature decarburization.

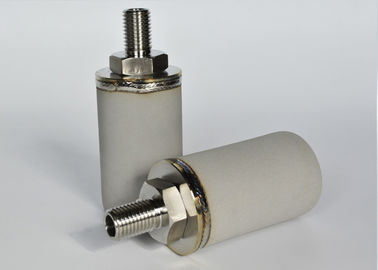

0.5um Powder Sintered Stainless Steel Tube With Suitable Connector 0

4. Precautions for the use of sintered stainless steel tube:

During installation, disassembly and clean avoid scratches, collisions, and falls on hard objects.
When using, the filtrate is filtered from the outside in to avoid the reverse direction.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.
When cleaning the filter element, the first backflow with pure gas, back blow pressure is 1.5 times the working pressure, each time for 3-5 seconds, and 4-6 times, then backwash with clean liquid for 3-5 minutes, repeat 2-3 times.
If the filter element is not good after online back blowing and backwashing, it should be removed and cleaned in time.
