1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet

1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet
1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet

Large Image :  1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet

Product Details:

Place of Origin: Baoji, China
Brand Name: changsheng
Certification: SGS, ISO
Model Number: None

Payment & Shipping Terms:

Minimum Order Quantity: 10 PCS
Packaging Details: Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time: 5-10 Days
Payment Terms: T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability: 10000PCS/Month
Detailed Product Description
Material: Stainless Steel316L Powder Size: 1000*300 Max
Technique: Sintering, Powder Sintered, Porous Sintered Shape: Square Plate And Round Disc
Working Pressure: 2.5-3Mpa Application: Filtration And Separation, Porous Bubble Diffusers/sparger
Highlight:

Porous Sintered Stainless Steel Sheet

,

2mm Sintered Stainless Steel Sheet

,

3Mpa Sintered Stainless Steel Sheet

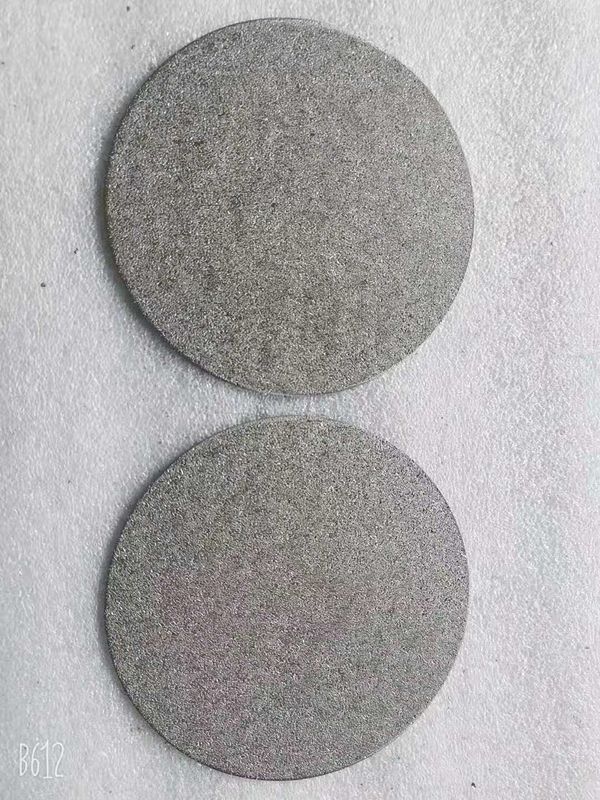

1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet​



1. Porous sintered Stainless steel filter material



a. Introduction: stainless steel powder sintered filter material (including tube and plate) is 316L powder as raw material, through screening, molding, sintering and become a microfiltration element. According to the requirements of users, we can produce various shapes, structures, different granularity, porosity of porous elements, such as: cover, cap, sheet, tube, bar filter element. Sintered stainless steel powder filter material is a new filter material with wide development prospect.

b.Details:

Stainless steel powder sintered filter material (including tube and plate) is 316L powder as raw material, through screening, molding, sintering and become a microfiltration element. High filtration precision, good air permeability, high mechanical strength, high material utilization rate, suitable for higher working temperature and heat shock. Widely used in pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical, metallurgical industry and gas purification field. As a result, stainless steel powder sintered filter material with its high-tech material composition and special molding process, so that it has a unique excellent performance, is a new type of filter material with broad development prospects.
2.The main performance

2.1. High temperature resistance, normal use below 500 degrees Celsius.
2.2 High filtration accuracy, pore stability, can effectively remove suspended solids and particles, excellent filtration accuracy, good purification effect.
2.3. Good air permeability, small pressure loss. High porosity, uniform pore diameter, small initial resistance, easy back blowing, online regeneration, easy cleaning, strong regeneration ability, long service life.
2.4. High mechanical strength, good rigidity, good plasticity, without external skeleton support protection, simple installation and use, easy maintenance, good assembly, welding, bonding and mechanical processing.
2.5. Pore uniformity, especially suitable for fluid distribution, homogenization treatment and other homogeneity requirements of the occasion.

2.6. Filtration precision: 1~65μm.

2.7No particles fall off, do not make the original solution form secondary pollution.
2.8. Good mechanical properties, low pressure difference, large flow, pressure filter can be pumped filter, simple operation.
2.9. Good corrosion resistance, can be used stably in nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, carbon dioxide gas and other environments. 10. Good molding process, the overall non-welding length can reach 1200 mm. The stainless steel powder products are formed in one time, without cutting, with high utilization rate of raw materials and maximum material saving, especially suitable for the components with large batch and complex structure.


1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet 0

1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet 1


2. Specification of titanium sintered porous materials


1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet 2

3. Physical properties of porous titanium materials

Material Filter Rating Porosity Penetrability Working pressure Operating temperature Shape specific surface area
Pure Titanium powder 5um-80um 25-45% 3-800M³/M²hKPa 2.5MPa 300℃ Round disc,sheet,tube,round bar,cap 10-40cm²/cm³

4. Company view



1mm 1.5mm 2mm Thickness Porous Sintered Stainless Steel Sheet 3
