Product Details:
Payment & Shipping Terms:
|
Material: | Metal | Type: | Plate, Disc |
---|---|---|---|
Usage: | Gas Filter, Liquid Filter, Sparger | Filter Rating: | 0.5-100um |
After-Sales Service: | Online-Support | OEM/ODM: | Available |
Corrosion Resistance: | High | Durability: | High |
Flexibility: | High | Permeability: | High |
Surface: | Porous | ||
Highlight: | High Precision Porous Metal Plate,Porous Metal Filter Sheet,100um Metal Filter Sheet |

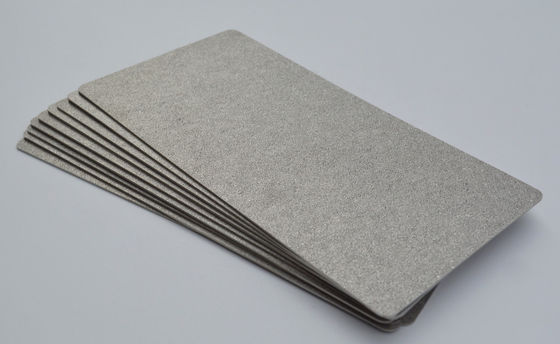

Porous stainless steel sintered 316L filter sheet for medical
Material | Filter Rating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
304,304L,316,316L Stainless steel powder | 0.5um-70um | 30-45% | 3-1300M³/M²hKPa | 3.0MPa | 600℃ | Round Disc, Sheet, Tube, Round Bar, cap. | 10-40cm²/cm³ |
Production | (Diameter)Length | (Diameter)Width | Thickness | Customized |
Sintered porous round discs | φ5-φ300mm | φ5-φ300mm | 0.5-10mm | Yes |
Sintered porous sheets | 5-300mm | 5-300mm | 0.5-10mm | Yes |
Sintered porous tubes | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Sintered porous cartridge | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Properties of stainless steel sintered porous materials:
Application of stainless steel sintered porous materials
According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core and so on.
Precautions for the use of stainless steel sintered porous materials
