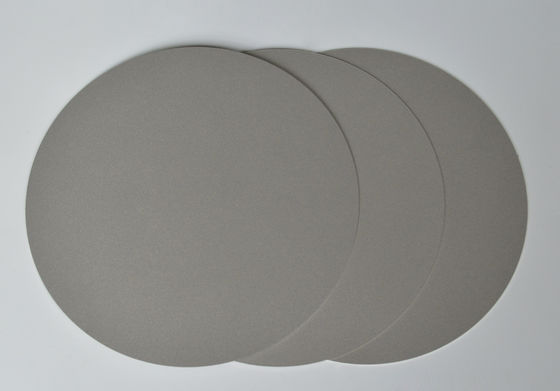

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant
Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant

Large Image :  Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant

Product Details:

Place of Origin: Baoji, China
Brand Name: changsheng
Certification: SGS, ISO9001
Model Number: None

Payment & Shipping Terms:

Minimum Order Quantity: 10 PCS
Packaging Details: Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability: 8000PCS/Month
Detailed Product Description
Material: Gr1 Titanium Powder Size: Customized
Technique: Sintering, Powder Sintered, Porous Sintered Shape: Plate/sheet/square Plate/disc/round Disk
Working Pressure: 2-2.5Mpa Application: Filtration&Purification, PEMFC And PEM Electrolyser, MEA, Medical& Biological
Permeability: High Porosity: 50-90%
Pressure Resistance: Excellent Surface Treatment: Polishing
Tensile Strength: High Thickness: 0.5-20mm
Type: Porous Plate
Highlight:

High Temperature Resistant Sintered Metal Plate

,

Micro Sintered Porous Metal Plate

,

Porous Metal Plate Corrosion Resistant

Micro Sintered Porous Metal Plate Gas Diffusion Layer  Porous Titanium Electrode



1. Sintered metal porous materials

Porous titanium plate is a kind of material with excellent filtration performance and is usually made by metal powder rolling method. Powder rolling is a process in which metal powder is used as raw material to directly roll metal into material. First of all, strip is rolled on powder rolling mill, and then through sintering, cold rolling (or hot rolling) and annealing, dense or porous finished sheet and strip can be made.



The porous titanium plate made of titanium metal powder has excellent corrosion resistance of titanium, can resist the erosion of various concentrations of nitric acid and most of the acid and alkali solutions, and has the advantages of non-toxic, high temperature resistance, high strength, high porosity, uniform air permeability, easy to clean and so on.

The platinum-plated electrode on pure titanium has the advantages of good electrical conductivity, chemical and electrochemical stability, corrosion resistance, high mechanical strength and catalytic activity, good selectivity and practicability, etc., and is widely used in electronics industry, metallurgy industry, precious metal electroplating and water treatment industries [1].

Titanium is a very active metal, it is very difficult to electroplate platinum directly on pure titanium. Especially for porous pure titanium plate, whether the oil removal, pickling and activation in the holes are thorough plays a key role in the uniformity of the coating and the adhesion between substrate and coating. In the process of platinum plating on porous materials, there are two main steps affecting the porosity of porous materials, one is the activation treatment of the material before plating, the other is the thickness of the plating of platinum coating. The experimental results in this paper can provide guidance for the process of platinum plating on titanium plate to obtain appropriate porosity.



2.Application of porous titanium plate

 Notes for Use:


1, the supply of porous sintered titanium plate is a consumable, although more durable than other filter elements, but in the process of cleaning and disassembly should pay attention not to scratch and touch, hit, fall and other phenomena, to prevent human damage. It is strictly prohibited to apply force to the surface of the filter element with tools.



2. Under normal circumstances, the filtrate is filtered from the outside to the inside of the filter element, and reverse filtration is not advocated.



3. When filtering, slowly pressurize to the required working pressure, and it is strictly prohibited to open the full valve instantly and rapidly pressurize.



4. Working pressure ≤ 2Mpa. When the filtration efficiency is less than 50%, clean air or clean liquid should be used in time for online backblowing and backwashing.



5. When the titanium filter element is backblown and backwashed, it is generally backblown with pure gas first, and the backblowing pressure is 1.2-1.5 times of the working pressure. The backblowing time is 3-5 seconds each time.



6. If the pressure loss of the filter element is still serious after online backblowing and backwashing, it should be removed in time

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant 0

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant 1



5. Physical properties of porous titanium materials

Material Filter Rating Porosity Penetrability Working pressure Operating temperature Shape specific surface area
Pure Titanium powder 5um-80um 25-45% 3-800M³/M²hKPa 2.5MPa 300℃ Round disc,sheet,tube,round bar,cap 10-40cm²/cm³



6. Main products
Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant 2

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant 3

Micro Sintered Porous Metal Plate Corrosion Resistant And High Temperature Resistant 4
