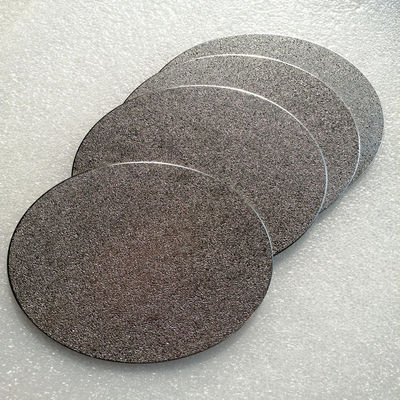

Dia 100Mm 70um Porous Titanium Sintered Filter Disc

Large Image : Dia 100Mm 70um Porous Titanium Sintered Filter Disc

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	ISO9000
Model Number:	Along

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Sintered Porous Titanium Disc	Application:	PEM Fuel Cell
Thickness:	0.5 Mm 1.0 Mm 1.5 Mm 2.0 Mm	Pore Size:	5 Um 10 Um 20 Um 30 Um 70 Um
Porosity:	25%-50%	Advantages:	Corrosion Resistant, Conductivity
Diameter:	Diameter 100 Mm Porous Titanium Disc
Highlight:	Titanium Sintered Filter Disc , Porous Sintered Filter Disc , 70um Sintered Filter Disc

Diameter 100 Mm 70 Um Filtration Rate Sintered Porous Titanium Disc

Manufacture process for our porous titanium (sintered titanium)

Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

Properties of porous titanium (sintered titanium):
1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be sued up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.
8. Good anti-microbial ability.
9. The overall length of up to 1000 mm without welding.
10. Can be online regeneration, easy to be cleaned, long life (several times to typically membrane cartridge)

Application of porous titanium-based on the above properties.

-Porous titanium sheet & porous stainless steel sheet can be used as gas diffusion layer (GDL) in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).
-Porous Titanium sheets & tubing can be assembled as titanium filters, can be used for filtration under high temperature & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as the anode

The main product we provide for porous titanium is porous titanium & micro-porous titanium sheet & disc, and porous titanium tube. We provide porous titanium tubing made titanium filter assemblies.

Available materials	sintered porous titanium disc
Porosity	25% to 45% open
Thickness variation	Thickness more than 0.5mm
Dimension	Depend on clients’ requirements
