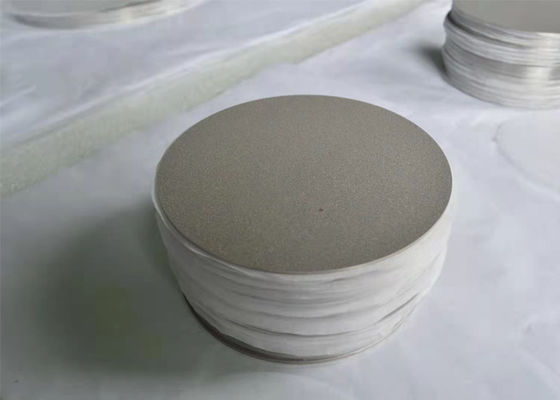

300mm 20um Micron Porosity Ss316 Sintered Filter Disc

Large Image : 300mm 20um Micron Porosity Ss316 Sintered Filter Disc

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Place Of Origin:	Baoji, China	Material:	Titanium
Specification:	Customizde	Shape:	Plate/Disc
Filter Media:	Titanium Powder	Filter Rating:	20um
Max Temperature:	300 Degree	Application:	Pharmaceutical
Porosity:	30-45%
Highlight:	Ss316 Sintered Filter Disc , Micron Porosity Sintered Filter Disc , 20um Sintered Filter Disc

Factory Supply Micron Porosity Sintered Ss 316 Stainless Steel Disc Filter For Pharmaceutical

Product introduction

Titanium sintered porous material is a kind of porous material with high quality spherical and high purity titanium powder as raw material and it is made rigid by forming and sintering at high temperature.

Production Steps

Filtrate-- Isostatic compaction--Vacuum sintering

Features of titanium sintered porous materials:

Available Size Range Of Metal Sintered Products
Product	Max Length(Diameter)	Width(Diameter)	Thickness Range	Customized
Sintered Porous Plate	800mm	300mm	0.5-2.2mm	Yes
Sintered Porous Disc	300mm	300mm	0.5-2.2mm	Yes

Application of titanium sintered porous materials

Decarburization filtration of pharmaceutical liquids.
Electrolytic gas industry precision filtration, gas distribution.
The medical industry makes biological implants.
Water treatment industry odor sterilization filtration and ozone aeration.
Clarification and filtration in food and beverage processing.
Prefiltration of reverse osmosis system for electronics industry.
High pressure air filtration in aerospace industry.
Filtration and recovery of precious metal catalyst in fine chemical industry.
The electrode matrix of a fuel cell.
Catalyst carrier in gas and liquid catalytic reactions.

300mm 20um Micron Porosity Ss316 Sintered Filter Disc 0

Precautions for the use of titanium sintered porous materials

During installation, disassembly and clean avoid scratches, collisions and falls on hard objects.
Install correctly to avoid reverse filtering.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.
When cleaning the filter element, first backblow with pure gas, backblow pressure is 1.5 times of the working pressure, each time for 3-5 seconds, and 4-6 times, then backwash with clean liquid for 3-5 minutes, repeat 2-3 times.
If the filter element is not good after online backblowing and backwashing, it should be removed and cleaned in time.
