Material: | Titanium | Type: | Plate |
---|---|---|---|
Usage: | Fuel Cell PEM, Gas, Liquid | Filter Rating: | 5um-100um |
After-Sales Service: | Online-Service | Max Temperature: | 300℃ |
Color: | Silver | Corrosion Resistance: | Excellent |
Density: | 4.51g/cm3 | Hardness: | High |
Process: | Sintering | Shape: | Plate |
Highlight: | Micron Scale Sintered Titanium Filter Plate,High Purity Sintered Titanium Plate,Acid Base Solutions Sintered Titanium Plate |

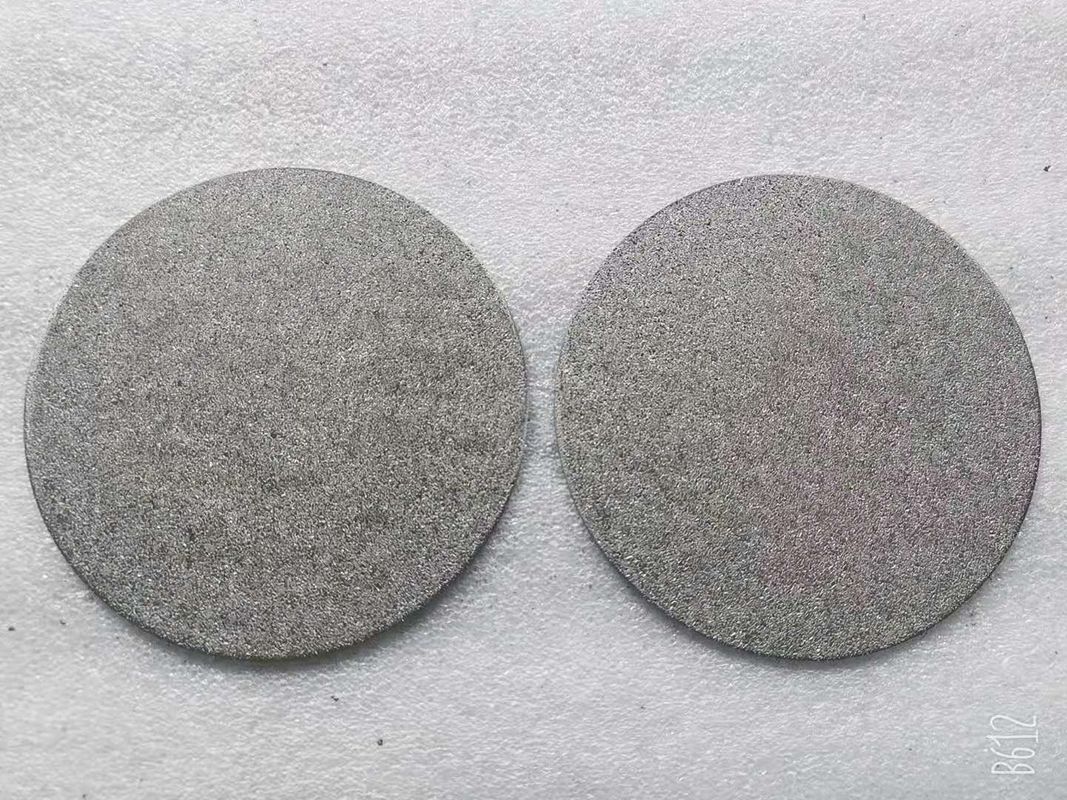

Porous Titanium Plate For Micron Scale Acid Base Solution
Porous titanium plate for micron scale acid-base solution is a kind of porous titanium filter element, which is made of industrial high-purity titanium powder (99.6%, 0.4% titanium alloy: nitrogen, hydrogen, iron, manganese, etc.) as raw materials, after screening, cold isostatic pressing, high temperature and high vacuum sintering.
Material | Filter Rating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
Pure Titanium powder | 5um-70um | 30-45% | 3-800M³/M²hKPa | 2.0MPa | 300℃ | Round disc,sheet,tube,round bar,cap | 10-40cm²/cm³ |
Production | (Diameter)Length | (Diameter)Width | Thickness | Customized |
Sintered porous round discs | φ5-φ400mm | φ5-φ400mm | 1-20mm | Yes |
Sintered porous sheets | 1-600mm | 5-400mm | 1-20mm | Yes |
Sintered porous tubes | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Sintered porous cartridge | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Properties of titanium sintered porous materials:
Titanium sintered porous materials are allowed to use in the environment:3% hydrochloric acid, 5% sulfuric acid, various concentrations of nitric acid (smoke nitric acid prohibited), chloroazotic acid, seawater, sodium hydroxide, carbonate and chloride salts of the aqueous solution.
Precautions for the use of titanium sintered porous materials
