Product Details:
Payment & Shipping Terms:
|
Material: | Titanium | Type: | Plate |
---|---|---|---|
Usage: | Fuel Cell PEM, Gas, Liquid | Filter Rating: | 5um-100um |
After-Sales Service: | Online-Service | Max Temperature: | 300℃ |
Hardness: | ≤HB220 | Length: | 100-3000mm |
Packing: | Wooden Case | Shape: | Plate |
Surface Treatment: | Sintered | Tensile Strength: | ≥900MPa |
Thickness: | 0.5-100mm | ||
Highlight: | Low Density Sintered Filter Plate,Sintered Titanium Plate Filter,Uniform Pore Size Sintered Titanium Plate |

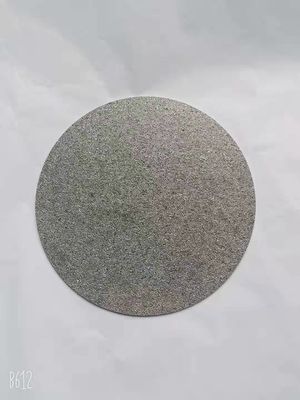

Sinter Ti Plate Filter Uniform Pore Size Distribution Low Density Integrity Design
Material | Filter Rating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
Pure Titanium powder | 5um-70um | 30-45% | 3-800M³/M²hKPa | 2.0MPa | 300℃ | Round disc,sheet,tube,round bar,cap | 10-40cm²/cm³ |
Production | (Diameter)Length | (Diameter)Width | Thickness | Customized |
Sintered porous round discs | φ5-φ400mm | φ5-φ400mm | 1-20mm | Yes |
Sintered porous sheets | 1-600mm | 5-400mm | 1-20mm | Yes |
Sintered porous tubes | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Sintered porous cartridge | 100-1200mm | φ20-φ200mm | 1-10mm | Yes |
Properties of titanium sintered porous materials:
Titanium sintered porous materials are allowed to use in the environment:3% hydrochloric acid, 5% sulfuric acid, various concentrations of nitric acid (smoke nitric acid prohibited), chloroazotic acid, seawater, sodium hydroxide, carbonate and chloride salts of the aqueous solution.
Precautions for the use of titanium sintered porous materials
