Porous Sintered Titanium Plate Strongelectrical Conductivity And Corrosion Resistance Bipolar plate

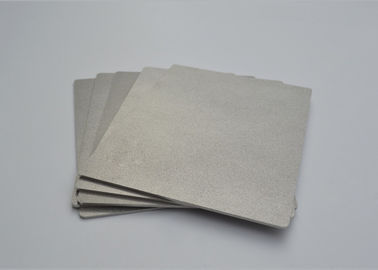

Large Image : Porous Sintered Titanium Plate Strongelectrical Conductivity And Corrosion Resistance Bipolar plate

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Type:	Metal Sintered Plate, Titanium Porous Plate/sheet	Shape:	Square Plate/round Disk
Material:	Titanium Powder, Gr1 Titanium Sponge	Technique:	Powder Sintered
Filter Rating:	0.5um~100um	Size:	300*800 Max
Working Pressure:	3.0Mpa	Usage:	Water Treatment, Gas/liquid/oil Filtration, PEM Water Electrolysis
Application:	Liquid,Gas, Chemical Industry,,environment,lab, , Food And Beverage,Hydrogen Energy Industry
Highlight:	3.0Mpa Porous Titanium Plate , Gr1 Porous Titanium Plate

Porous Sintered Titanium Plate Strongelectrical Conductivity And Corrosion Resistance Bipolar Plate

1. Material description

Porous Sintered Titanium material is a kind of porous material with high quality spherical and high purity titanium powder as raw material and it is made rigid by forming and sintering at high temperature.The material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.

Porous Sintered Titanium Plate Strongelectrical Conductivity And Corrosion Resistance Bipolar plate 0

2. Specification of porous sintered titanium materials

Material

Filter

Rating

Porosity

working

pressure

Operating temperature

shape

Penetrabiltity

Specific surface area

titanium
powder

0.5um-70um

30-45%

2.0MPa

300℃

Round Disc,Sheet,

Tube,Round Bar,cap.

3-800M³/M²hKPa

10-40cm²/cm³

Production	(Diameter)Length	(Diameter)Width	Thickness	Customized
Sintered porous round discs	φ5-φ400mm	φ5-φ400mm	1-20mm	Yes
Sintered porous sheets	1-600mm	5-400mm	1-20mm	Yes
Sintered porous tubes	100-1200mm	φ20-φ200mm	1-10mm	Yes
Sintered porous cartridge	100-1200mm	φ20-φ200mm	1-10mm	Yes

3. Properties of porous sintered titanium materials:

Pore diameter uniformity, pore stability, high separation efficiency.
High porosity, low filtration resistance and high permeability.
Good chemical stability, acid and alkali corrosion resistance, oxidation resistance.
Morphological stability, no particle shedding, comply with food hygiene and pharmaceutical GMP requirements.
Good mechanical properties, low differential pressure, large flow.
Strong anti-microbial ability, does not interact with microorganisms.
Online regeneration, easy cleaning, long service life.
Excellent biocompatibility, can be widely used in biological, food, pharmaceutical, medical industry.
Excellent electromagnetic shielding performance.
Good damping and shock resistance

4. Application of porous sintered titanium materials

Titanium sintered porous materials are mostly used for filtering materials,electrodes,heat transfer materials,catalyst carrier materials,noise cancelling materials according to their physical and structural properties.

Decarburization filtration of pharmaceutical liquids.
Electrolytic gas industry precision filtration, gas distribution.
The medical industry makes biological implants.
Water treatment industry odor sterilization filtration and ozone aeration.
Clarification and filtration in food and beverage processing.
Prefiltration of reverse osmosis system for electronics industry.
Terminal filtration of petroleum products in the petrochemical industry and filtration of carbonic alkali liquid in the chemical industry.
High pressure air filtration in aerospace industry.
Filtration and recovery of precious metal catalyst in fine chemical industry.
The electrode matrix of a fuel cell.
Catalyst carrier in gas and liquid catalytic reactions.

6. Attention points for the use of porous sintered titanium materials:

During installation, disassembly and clean avoid scratches, collisions and falls on hard objects.
When using, the filtrate is filtered from the outside in to avoid the reverse direction.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.

7. Main products list
