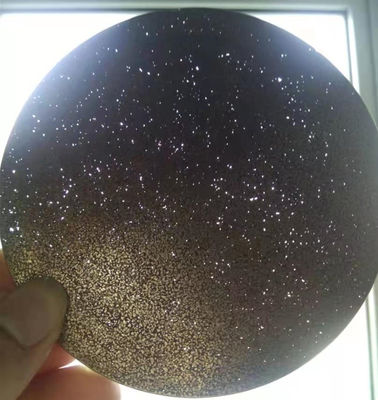

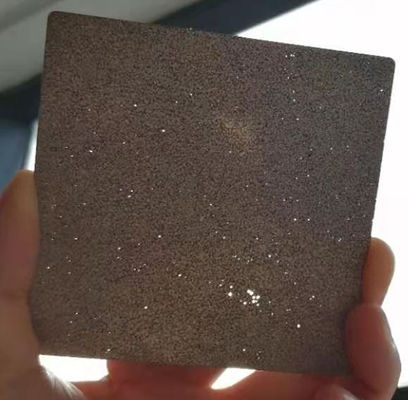

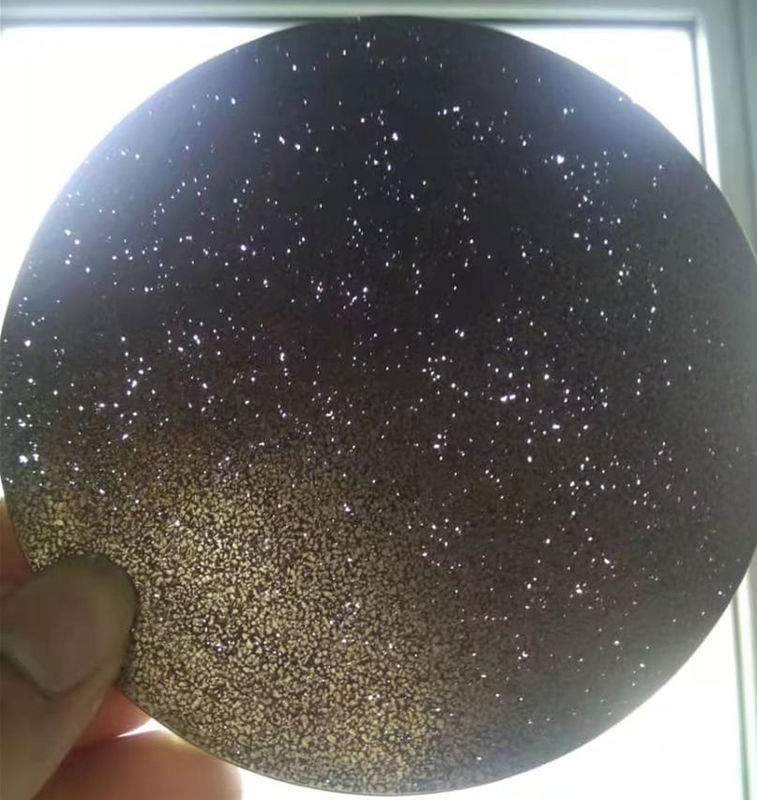

70um Sintered Titanium Plate For PEM Electrolysis Hydrogen

70 Um Pore Size Porous Titanium Plate For PEM Electrolysis Hydrogen

Porous titanium (sintered titanium, titanium foam) is in many fields, like the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry and gas purification, etc. Porous titanium also can be used as a Gas Diffusion Layer (PDL) in new generation fuel cells (PEMFC).

Manufacture process for our porous titanium (sintered porous titanium)

Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

Properties of porous titanium (sintered titanium):
1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be sued up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.

Application of porous titanium-based on the above properties.
-Porous titanium sheet & porous stainless steel sheet can be used as a gas diffusion layer (GDL) in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).
-Porous Titanium sheets & tubing can be assembled as titanium filters, can be used for filtration under high temperature & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as an anode

The main product we provide for porous titanium is porous titanium & micro-porous titanium sheet & disc, and porous titanium tube. We provide porous titanium tubing made titanium filter assemblies.

Porous titanium plate is available in a variety of fuel cell operating temperatures, and also can be coated with platinum or another catalyst layer to enhance performance. Along with porous metal titanium plate is a leading choice of gas diffusion layer or electrode plate for high-performance electrolyzer and fuel cell. They have uniform porosity, strength, and better corrosion resistance and can provide superior performance.

The electrode plate is a crucial component in the electrolysis chamber for a water ionizer. The materials of the electrode not only increases the efficiency of electrolysis, but it can also contaminate the water, corrosion, oxidation, and degradation of the electrodes are common problems with electrolysis. Once the electrodes undergo deterioration, it may adversely affect one’s health.

Platinum coated titanium electrode is mostly employed in water electrolysis recently. As an inert material, platinum does not react with the electrolytes or products during electrolysis. It also offers excellent electrical conductivity enable to increase the longevity of the machine.

Along with use medical-grade titanium as the base material, adopts nano-plating technology to coat the platinum. Nano plating provides more surface area and denser coating to create the best ORP alteration and durability. Other manufacturers use a specialized dip and spray application, which leaves the surface rough to the touch. The electrode is both sides coated; this reversing polarity design enables continuous cleaning, the electrode plates to remain free of calcium or scale build-up which allows for the most efficient water ionization.

The platinum-plated solid titanium plate is thick electro-plated platinum on titanium, providing the highest level of conductivity and durability. The cutting edge design and proven durability of electro-plated platinum plating ensure you get the best alteration and durability.

Specifications:
