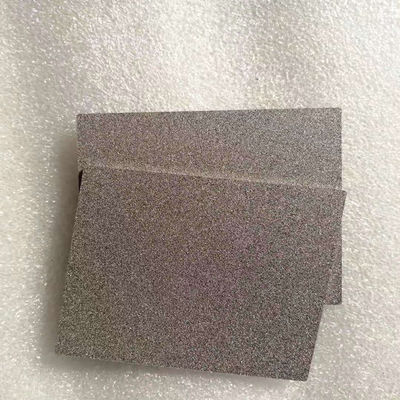

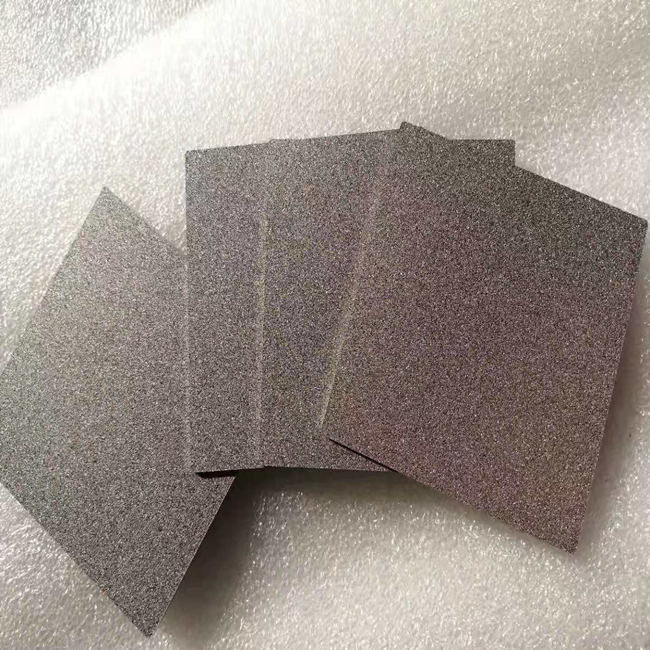

10 Micron Electrode Porous Sintered Titanium Plate

Large Image : 10 Micron Electrode Porous Sintered Titanium Plate

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	ISO9000
Model Number:	Along

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Sintered Titanium Plate	Application:	PEM Fuel Cell Water Electrolysis Hydrogen
Thickness:	0.5 Mm 1.0 Mm 1.5 Mm 2.0 Mm	Pore Size:	5 Um 10 Um 20 Um 30 Um 70 Um
Porosity:	25%-50%	Advantages:	Corrosion Resistant, Conductivity
Diameter:	Diameter 100 Mm Porous Titanium Disc
Highlight:	Porous Sintered Titanium Plate , Electrode Sintered Titanium Plate , 10 Micron Sintered Titanium Plate

10 Micron Sintered Porous Titanium Plate Electrode Plate PEM Electrolysis Hydrogen

Properties of porous titanium electrode plate (sintered porous titanium plate):

1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be sued up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.
8. Good anti-microbial ability.
9. The overall length of up to 1000 mm without welding.
10. Can be online regeneration, easy to be cleaned, long life (several times to typically membrane cartridge)

Application of sintered porous titanium filter elements

-Porous titanium sheet & porous stainless steel sheet can be used as gas diffusion layer (GDL) or electrode plate in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).
-Porous Titanium sheets & tubing or sintered titanium filter cartridge can be assembled as titanium filters, can be used for filtration under high temperature & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as the anode or sintered porous electrode plate

The main product we provide for porous titanium is porous titanium & micro-porous titanium sheet & disc, and porous titanium tube. We provide porous titanium tubing made titanium filter assemblies.

10 Micron Electrode Porous Sintered Titanium Plate 0

10 Micron Electrode Porous Sintered Titanium Plate 1
